CARBURETOR
RENNER'S CORNER

A-9501

Description: ZENITH CARBURETOR JET SET

Comments: 4 Flowed jets & gaskets

Application: 1928 - 31

$

48.00

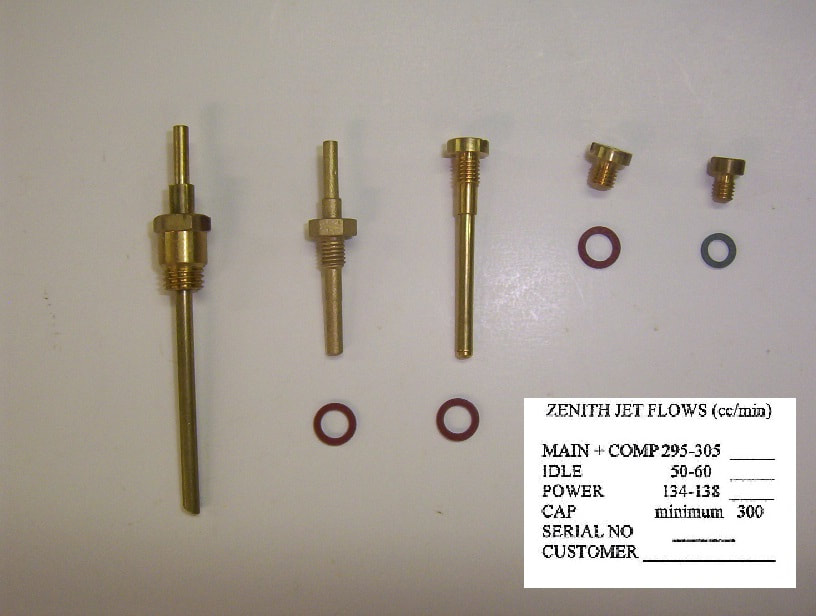

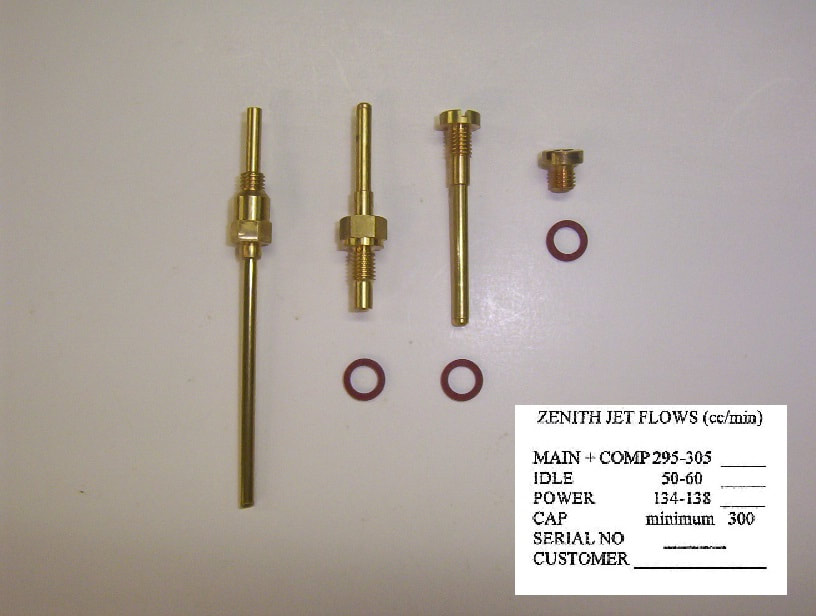

B-9501

Description: ZENITH CARBURETOR JET SET

Comments: 5 Flowed jets & gaskets

Application: 1932 - 34 4-cyl

$

68.00

B-9510-S

Description: ADAPTER FOR MODEL A CHOKE ROD WITH MODEL B CARBURETOR

Comments: Allows model A choke rod to connect with B carb on B manifold

Application: 1928 - 31

$

12.00

B-9510-XC

Description: ADAPTER FOR MODEL A FUEL LINE TO MODEL B CARBURETOR
Comments: Allows connection of original model A fuel line to model B ZENITH carburetor
Application: 1928 - 31

$

14.00

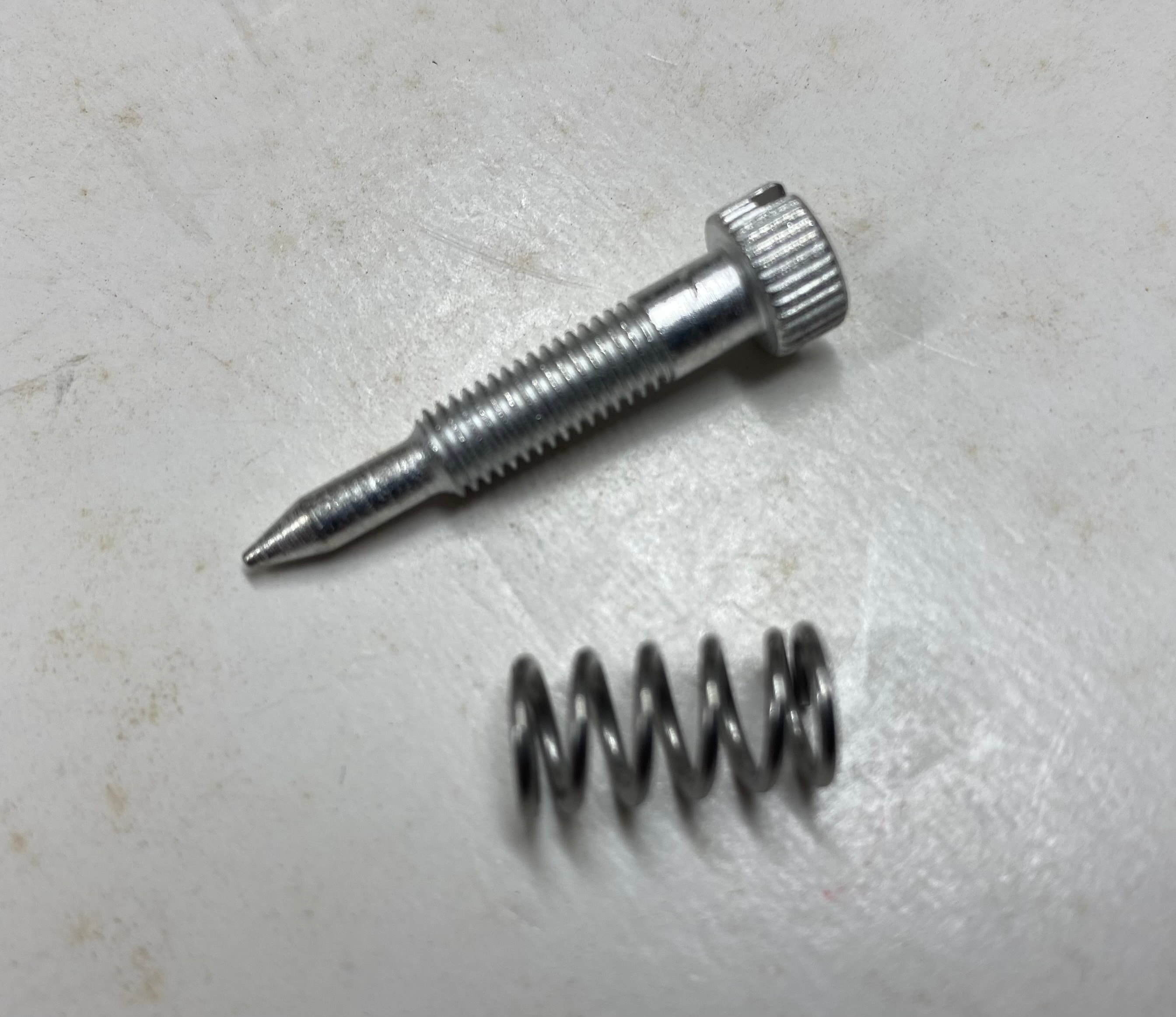

B-9577

Description: ZENITH CARBURETOR IDLE AIR FUEL SCREW

Comments: 5 mm X .75 thd CADMIUM PLATED WITH STAINLESS SPRING

Application: 1928 - 34 4-cyl

$

6.00

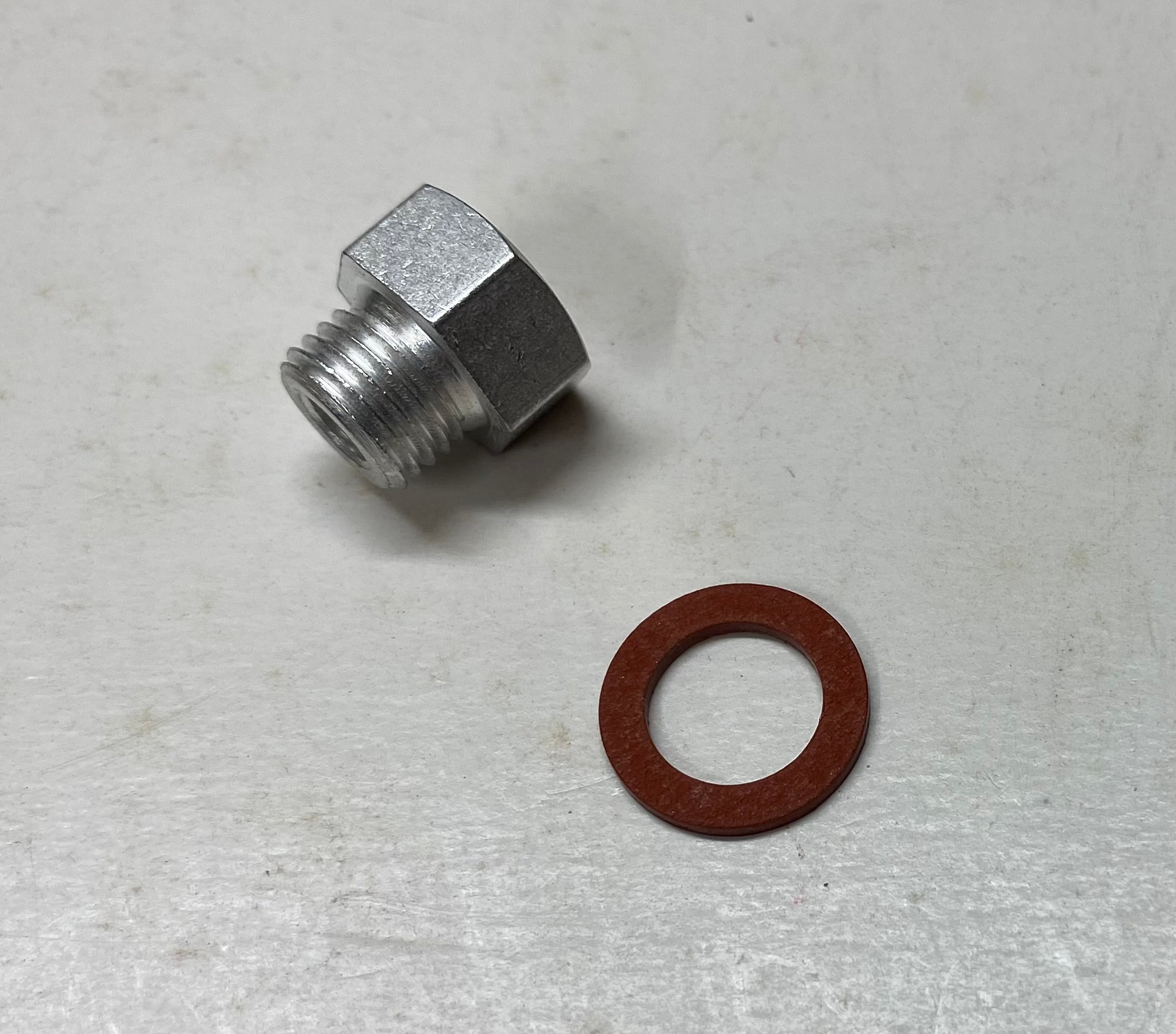

B-9590

Description: CARBURETOR DRAIN PLUG & GASKET

Comments: 3/8"-24 thd CADMIUM PLATED FITS ALL

Application: 1928 - 34 4-cyl

$

4.00

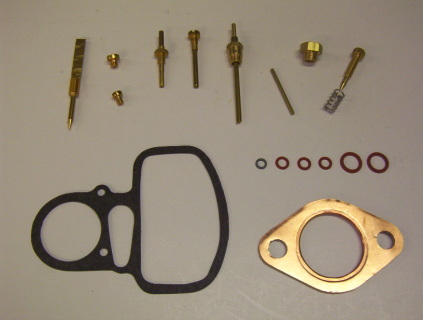

B-9595

Description: ZENITH CARBURETOR REBUILD KIT

Comments: 18 pieces with FLOW TESTED jets ( no float valve )

Application: 1932 - 34 4-cyl

$

94.00

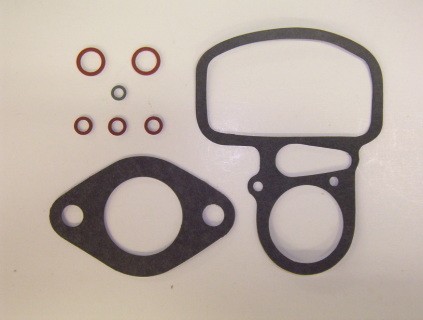

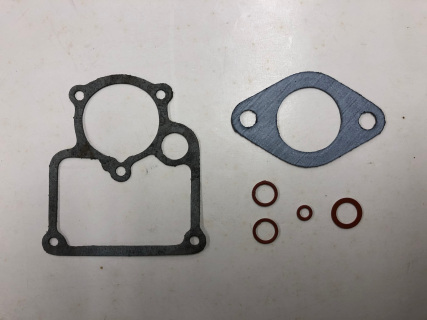

B-9502

Description: ZENITH CARBURETOR GASKET SET
Comments: 8 die cut gaskets
Application: 1932 - 34  4-cyl

$

3.50

B-9581-OS

Description: .015" OVERSIZED THROTTLE SHAFT

Comments: For ZENITH carburetors

Application: 1932 - 34 4-cyl

$

28.50

B-9525

Description: GAS ADJUSTING VALVE NEEDLE

Comments: For ZENITH carburetors

Application: 1932 - 34 4-cyl

$

14.00

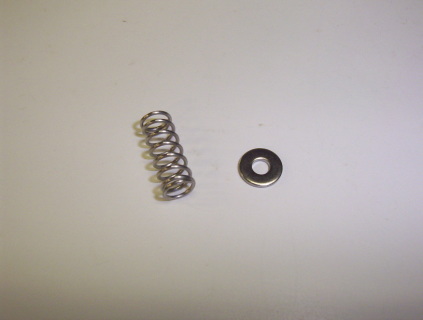

B-9526

Description: GAS ADJUSTING VALVE SPRING AND WASHER
Comments: For ZENITH carburetors
Application: 1932 - 34  4-cyl

$

4.00

B-9564 ORIG STYLE

Description: FUEL INLET / FLOAT VALVE

Comments: Original style needle and seat for the B Zenith carburetors

Application: 1932 - 34 4-cyl

$

22.00

B-9564 VITON TIP

Description: FUEL INLET / FLOAT VALVE

Comments: VITON tip needle and seat for the B Zenith carburetors

Application: 1932 - 34 4-cyl

$

22.00

B-9553

Description: FLOAT CHAMBER BAFFLE

Comments: For ZENITH carburetors use with B-9550 rectangular float

Application: 1932 - 34 4-cyl

$

42.00

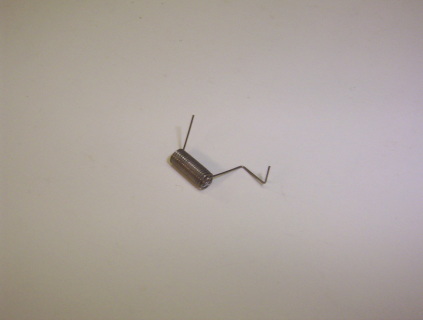

B-9651

Description: FLOAT ASSIST SPRING
Comments: For ZENITH carburetors ( NEEDED ONLY IF USING A FUEL PUMP )
Application: 1932 - 34  4-cyl

$

12.50

B-9595-T

Description: POWER JET TUBE

Comments: Correct Length, ID & OD Stainless - 2 PIECES

Application: 1932 - 34 4-cyl Model B ZENITH

$

16.00

B-9595-P

Description: ZENITH CARBURETOR POWER JET TUBE KIT

Comments: Tools for Removal and replacement with detailed instructions & 2 tubes

Application: 1932 - 34 4-cyl Model B

$

40.00

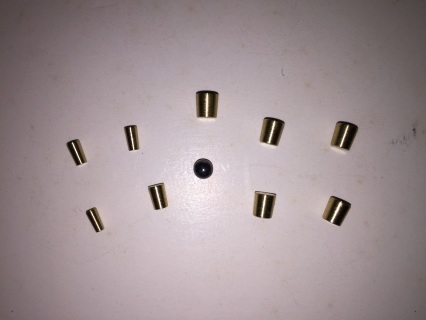

B-9576

Description: ZENITH CARBURETOR PASSAGE PLUG KIT
Comments: 10 Plugs with detailed instructions
Application: 1932 - 34  4-cyl Model B

$

10.00

A-9585-X

Description: ZENITH CARBURETOR HARDWARE KIT
Comments: All screws / bolt and lock washers
Application: 1928 - 31

$

8.50

B-9585-X

Description: ZENITH CARBURETOR HARDWARE KIT

Comments: All screws / bolt and lock washers

Application: 1932 - 34 4 cyl

$

8.50

B-9595-AL

Description: CARBURETOR REBUILD KIT - MARVEL SCHEBLER / ALLSTATE 2405 / JOHNSON JFA

Comments: 31 pieces ( float valve & main nozzle sold separately )

Application: 1928 - 34

$

70.00

B-9502-AL

Description: GASKET SET - MARVEL SCHEBLER / ALLSTATE 2405 / JOHNSON JFA

Comments: 6 Die cut gaskets ( Don't forget the GAV seal kit B-9526-AL !!! )

Application: 1928 - 34

$

8.00

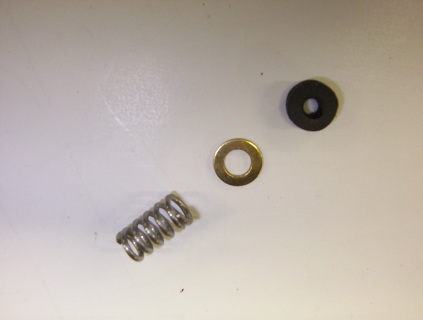

B-9526-AL

Description: GAS ADJUSTING VALVE NEEDLE SEAL KIT
Comments: For MARVEL SCHEBLER / ALLSTATE 2405 / JOHNSON JFA
Application: 1928 - 34

$

5.00

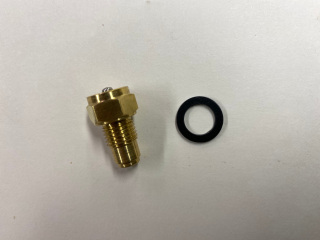

B-9564-AL

Description: FUEL INLET / FLOAT VALVE
Comments: Viton tip with gasket - ( MARVEL SCHEBLER / ALLSTATE 2405 / JOHNSON JFA )
Application: 1928 - 34

$

18.00

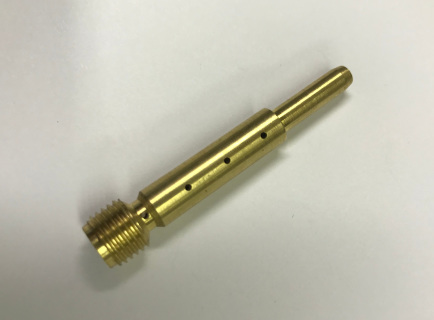

B-9534-AL

Description: MAIN NOZZLE - JET

Comments: For MARVEL SCHEBLER / ALLSTATE 2405 / JOHNSON JFA

Application: 1928 - 34

$

18.00

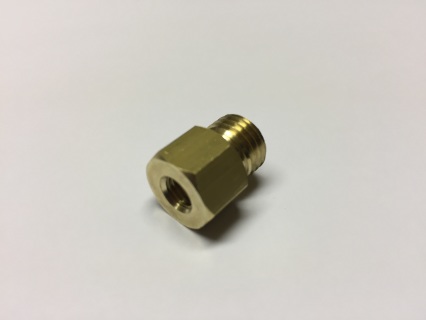

B-9288-FLA

Description: FORD FUEL LINE ADAPTER FITTING
Comments: 1/8"- 27 NPT male to 1/2"- 20 female ( for 1/4" tube nut & ferrule )
Application: 1928 - 34

$

6.00

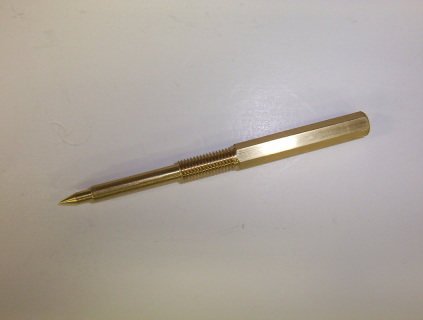

B-9570-AL

Description: GAV / CHOKE NEEDLE DRIVER ( HEX )
Comments: For MARVEL SCHEBLER / ALLSTATE 2405 / JOHNSON JFA
Application: 1928 - 34

$

40.00

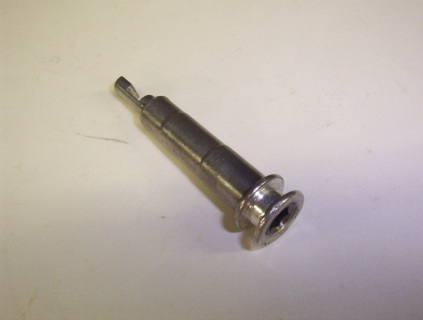

B-9525-AL

Description: GAV NEEDLE ( GAS ADJUSTING VALVE )
Comments: For MARVEL SCHEBLER / ALLSTATE 2405 / JOHNSON JFA
Application: 1928 - 34

$

15.00

B-9528-AL

Description: GAS ADJUSTING VALVE NEEDLE HOUSING NUT
Comments: For MARVEL SCHEBLER / ALLSTATE 2405 / JOHNSON JFA
Application: 1928 - 34

$

15.00

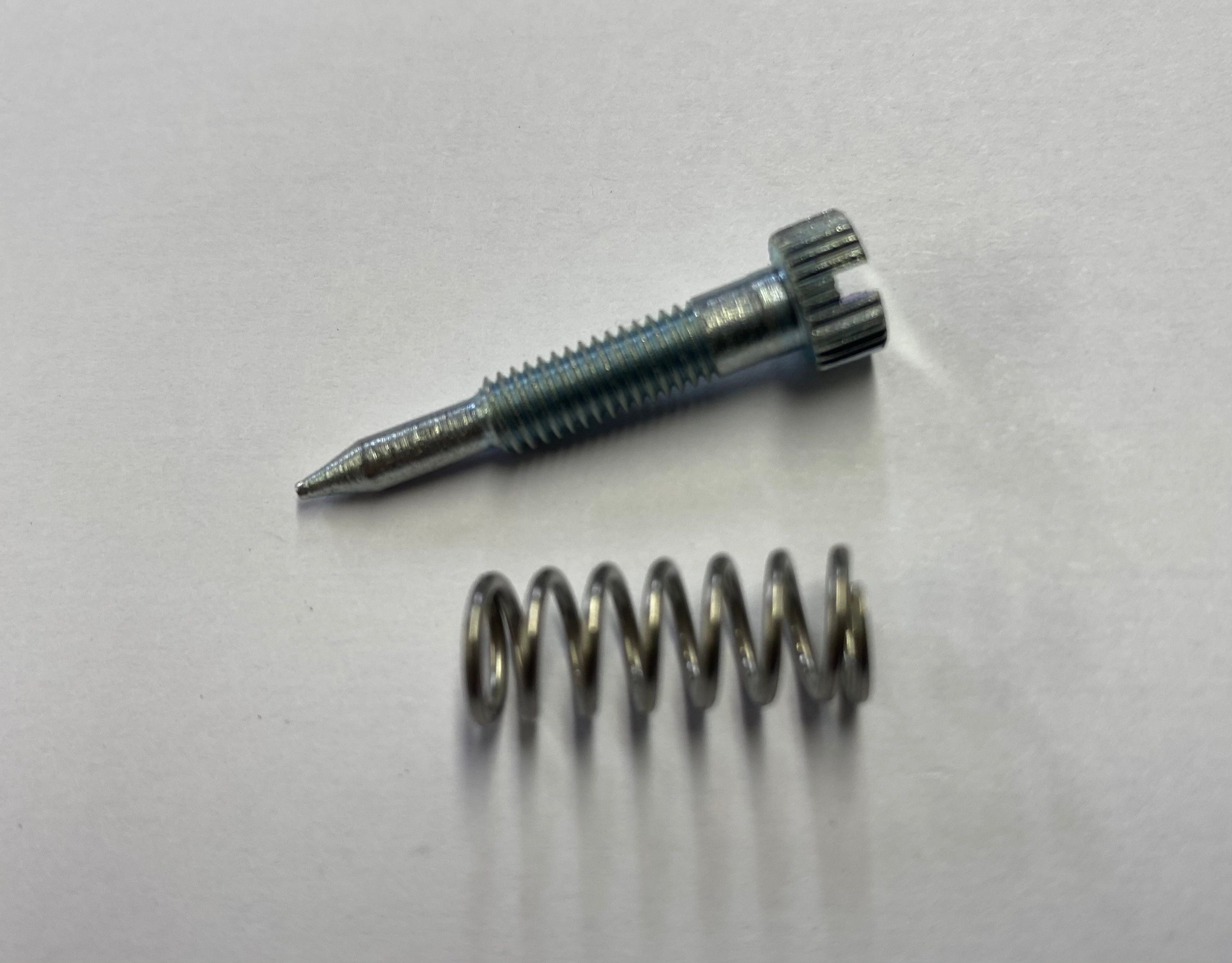

B-9577-AL

Description: AIR / FUEL SCREW AND S.S. SPRING - #10-32 THD

Comments: For MARVEL SCHEBLER / ALLSTATE 2405 / JOHNSON JFA

Application: 1928 - 34

$

8.00

B-9550-AL

Description: FLOAT ASSEMBLY

Comments: For MARVEL SCHEBLER / ALLSTATE 2405 / JOHNSON JFA

Application: 1928 - 34

$

30.00

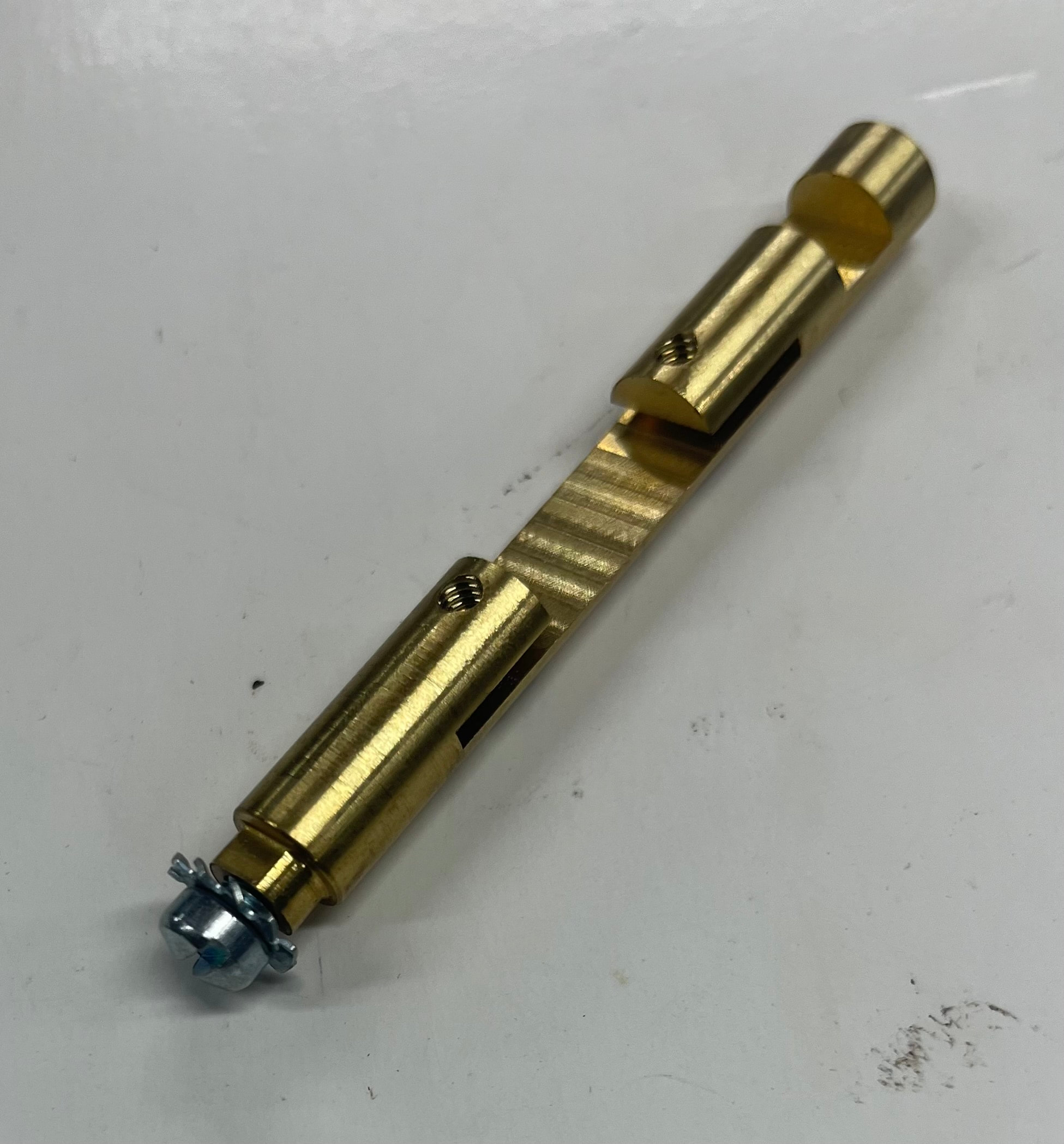

B-9581-AL

Description: THROTTLE SHAFT

Comments: Use your original lever arm - MARVEL SCHEBLER / ALLSTATE 2405 / JOHNSON JFA

Application: 1928 - 34

$

24.00

B-9591-5

Description: DRAIN PLUG GASKET

Comments: FOR 3/8 Thread - 5 Pieces

Application: 1928 - 34 ZENITH A & B - TILLOTSON - MARVEL

$

2.00

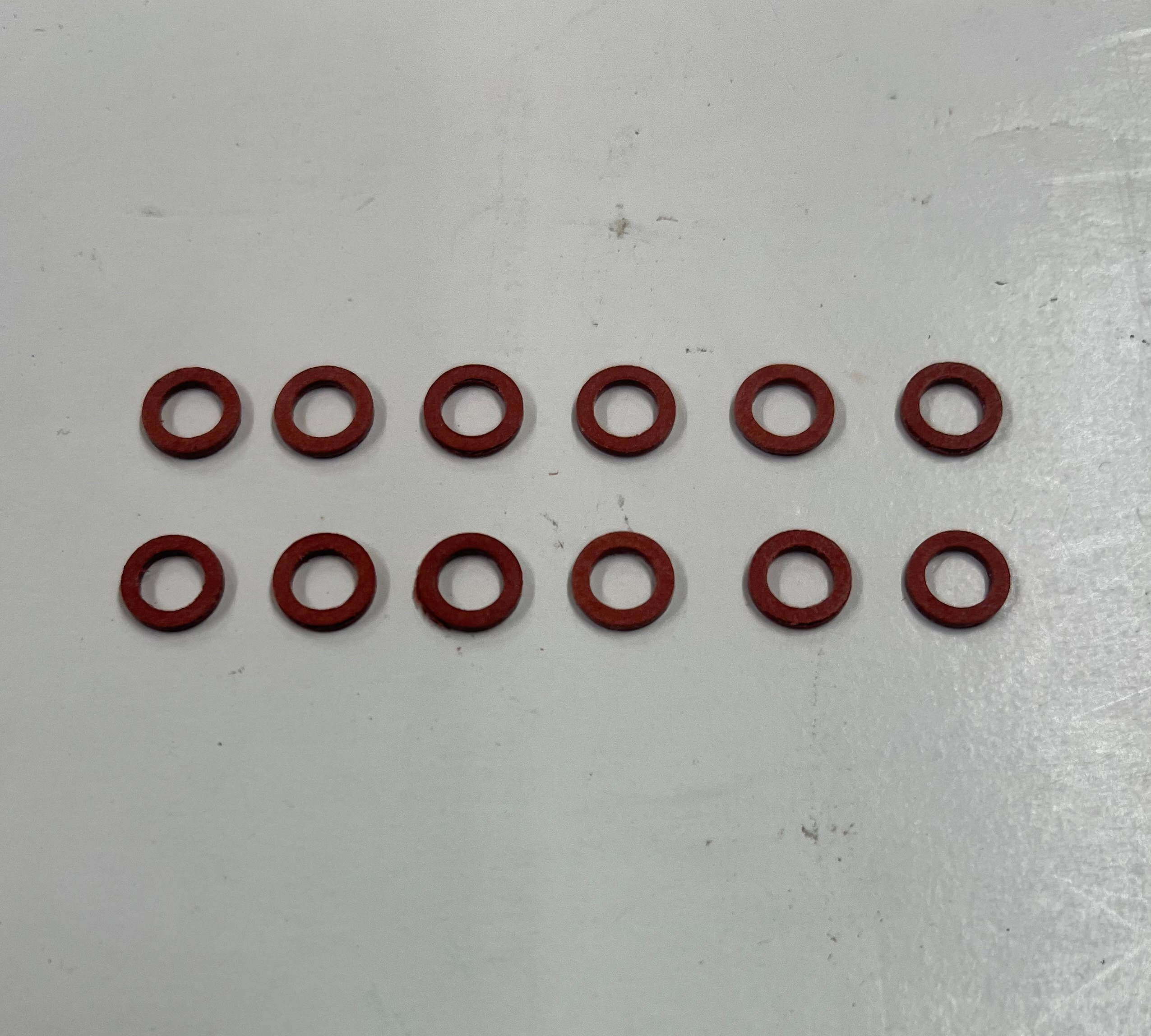

A-9537-12

Description: JET GASKET

Comments: For 5mm Thread 12 pieces

Application: 1928 - 31 ZENITH Model A

$

3.00

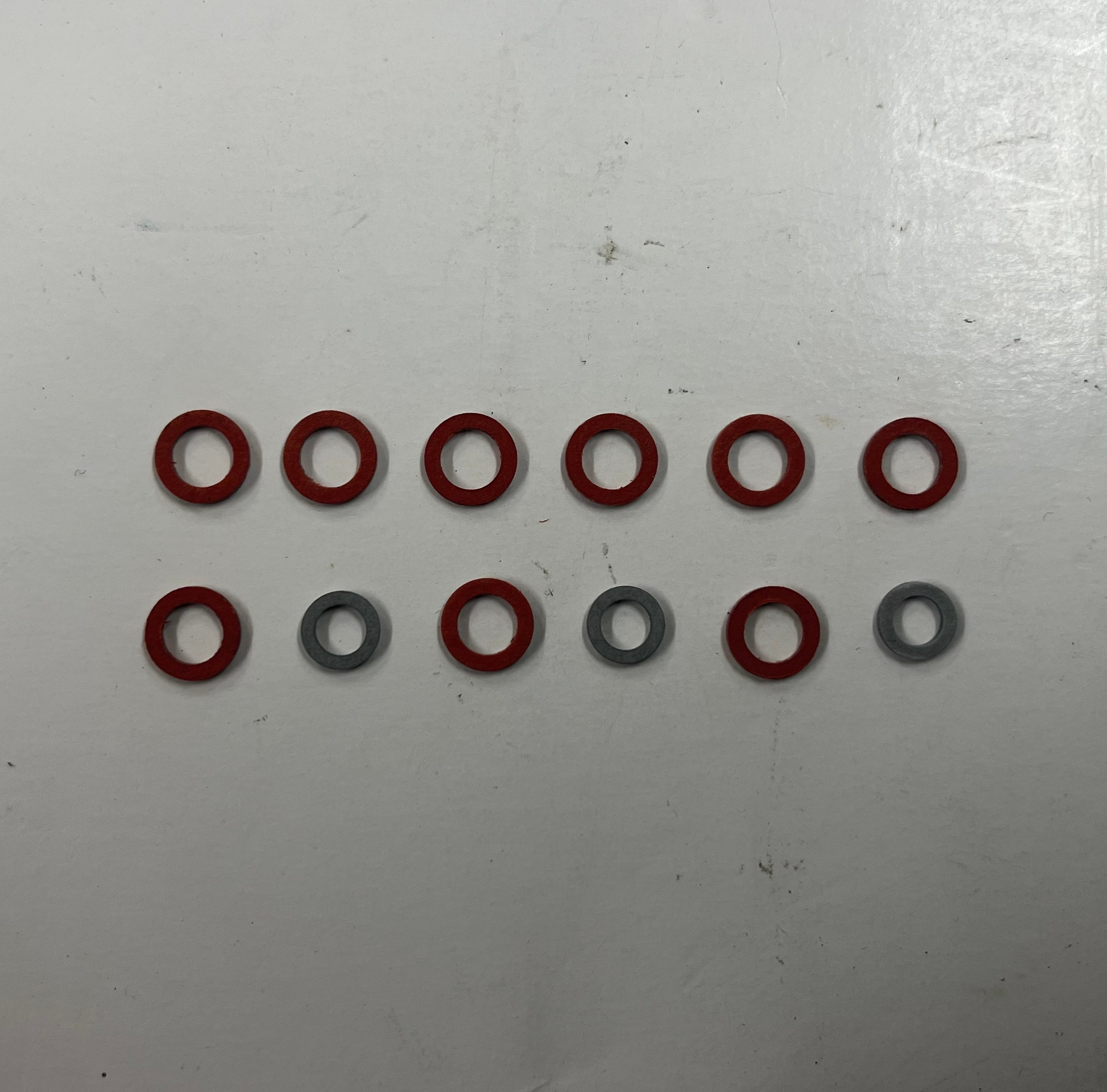

B-9537-12

Description: JET GASKET

Comments: For 5mm & 4mm Thread 12 pieces

Application: 1932 - 34 ZENITH Model B

$

3.00

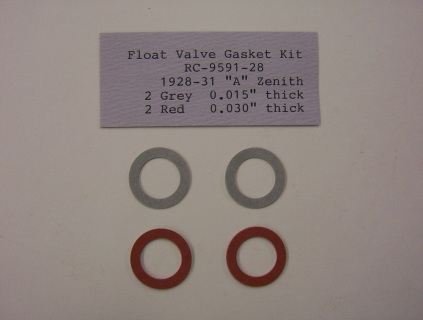

A-9591

 Description: FLOAT VALVE GASKET KIT
Comments: For adjusting the float level in ZENITH carburetors ( bending the float can cause leaks )
Application: 1928 - 31

$

2.00

B-9591

Description: FLOAT VALVE GASKET KIT
Comments: For adjusting the float level in ZENITH carburetors ( bending the float can cause leaks )
Application: 1932 - 34

$

2.00

B-9591-TL

Description: FLOAT VALVE GASKET KIT
Comments: For adjusting the float level in TILLOTSON carbs ( bending the float can cause leaks )
Application: 1928 - 34

$

2.00

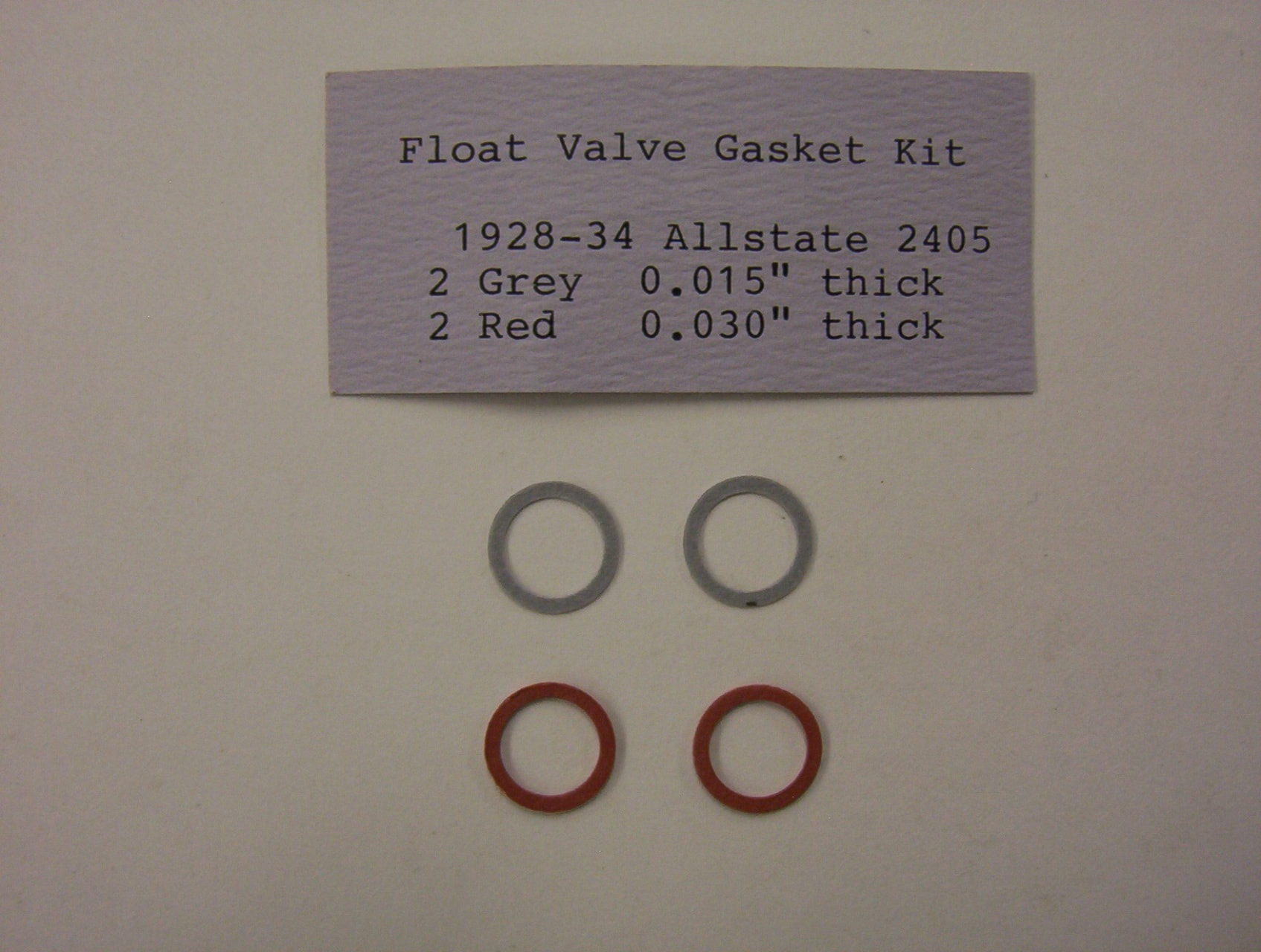

B-9591-AL

Description: FLOAT VALVE GASKET KIT
Comments: For adjusting the float level in MARVEL SCHEBLER / ALLSTATE 2405 / JOHNSON JFA
Application: 1928 - 34

$

2.00

B-9599-Z

Description: ZENITH CARBURETOR FUEL LEVEL SETTING GAUGE
Comments: High accuracy to set the float - fuel level / instructions included
Application: 1928 - 34

$

16.00

B-9599-AL

Description: CARBURETOR FUEL LEVEL SETTING GAUGE - MARVEL SCHEBLER / ALLSTATE 2405 / JOHNSON JFA
Comments: High accuracy to set the float - fuel level / instructions included
Application: 1928 - 34

$

16.00

B-9599-TL

Description: TILLOTSON X XF CARBURETOR FUEL LEVEL SETTING GAUGE
Comments: High accuracy to set the float - fuel level / instructions included
Application: 1928 - 34

$

16.00

NOTES:
ALL the jets have been sized accordingly for today's fuels and rates recorded.
This flowing of the jets gives you a baseline.

It doesn't mean your engine will run perfectly,
​ although these jet flows work in 99% of the carbs we do.
​
This is where you start.
With this info educated adjustments can be made if needed to optimize performance.
Without knowing where your jetting is your are just guessing.

Remember when adjusting the float/fuel level in any carb.
​do not to bend the float !
Use shim gaskets under the needle and seat to adjust the level.
Bending floats leads to cracked leaking floats.

​WE SELL INDIVIDUAL PIECES OF KITS !!
